How Far From Vent Can Sink Be??

Plumbing Vent System Distances & Routing
If a plumbing fixture is located too far from the main building vent stack, then its own drain pipe must have its own vent stack connection piping.

The usual slope on the fixture drain piping is 1/4″ of slope per 12″ (foot) of horizontal distance or “run” of piping.

Do you need a vent pipe for kitchen sink?

A plumbing fixture like a sink can not function properly without a sink vent. A sink needs a vent because the pressure put on the drain pipe when water flows down the drain pipe needs to equalize. The air needs to escape the drain pipe in order for the sink to vent.

Do I need a vent for every drain?

But not everyone knows that they ALL also need to be vented. Whether you’re putting in a tub, toilet, sink, or floor drain, they all need a plumbing vent on the drain to make it work properly. The drain will likely make gurgling noises. The water in the trap could siphon out, resulting in a potent sewer smell.

How do you check a vent pipe for blockage?

Use a flashlight to shine a bright light down the vent pipe to look for further blockage you can reach. If you can see but can’t reach, run a plumber’s snake down the vent pipe. To continue, feed the end of a garden hose down the vent and have someone on the ground turn on the water.

What is the minimum size of a vent pipe for kitchen sink?

If the waste line has a diameter of 1 1/4 inches, the vent can be no farther than 2 1/2 feet from the trap. If the waste line is 1 1/2 inches, this critical distance is 3 1/2 feet. The minimum diameter of the vent pipe is 1 1/4 inches in both cases.

How far can you run a drain without a vent?

When builders look only at the table without reading the text, they find that a 2-inch-diameter drain can run a maximum distance of 8 feet to the vent.

Why is my kitchen sink gurgling?

The other most common problem that gurgling sinks have is a blocked vent pipe. There is a vent pipe attached to the drainpipe under your sink that allows sewer gas to escape. This can cause sewer gas to then push backwards into the drain pipe, which causes that gurgling noise you are hearing.

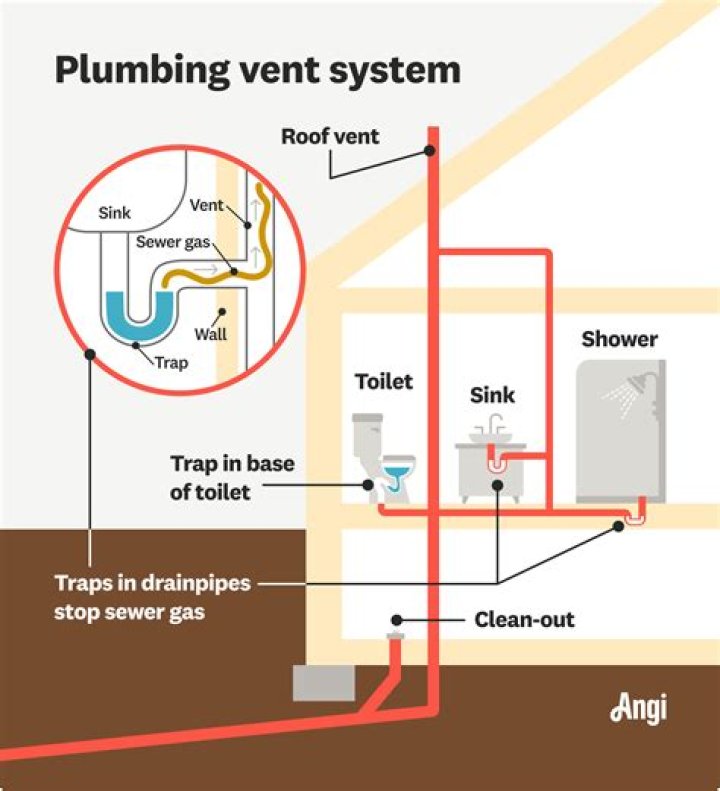

How does a sink vent work?

At the building drain system’s lowest point, the drain-waste vent is attached, and rises (usually inside a wall) to and out of the roof. Waste exits from the building through the building’s main drain and flows through a sewage line, which leads to a septic system or a public sewer.

Why does kitchen sink smell like sewer?

Usually, a sewer smell means that the water in the trap that blocks sewer gas has evaporated. This can happen if the sink hasn’t been used for awhile. If that’s the case, all you should have to do is run the sink and let the water fill back up in the trap.
